A new control system allows larger fans to be converted to variable speed with improved accuracy and reduced energy consumption.

2 Min Read
Convert large fans to minimum winter fans

Most fans used for minimum winter ventilation rates tend to be smaller diameter fans. It’s necessary to use fans with a lower total cubic feet per minute output as the most common method of slowing the fan to reduce air volume is reducing the voltage going to the motor. It is generally advised not to operate voltage-regulated fans at speeds below 40-50% of their maximum revolutions per minute to prevent the motor from overheating and stalling.

Although smaller fans are effective in delivering the correct minimum rates they do not significantly contribute to the total cfm rate needed to cool the building during maximum ventilation or perform at the highest energy efficiency.

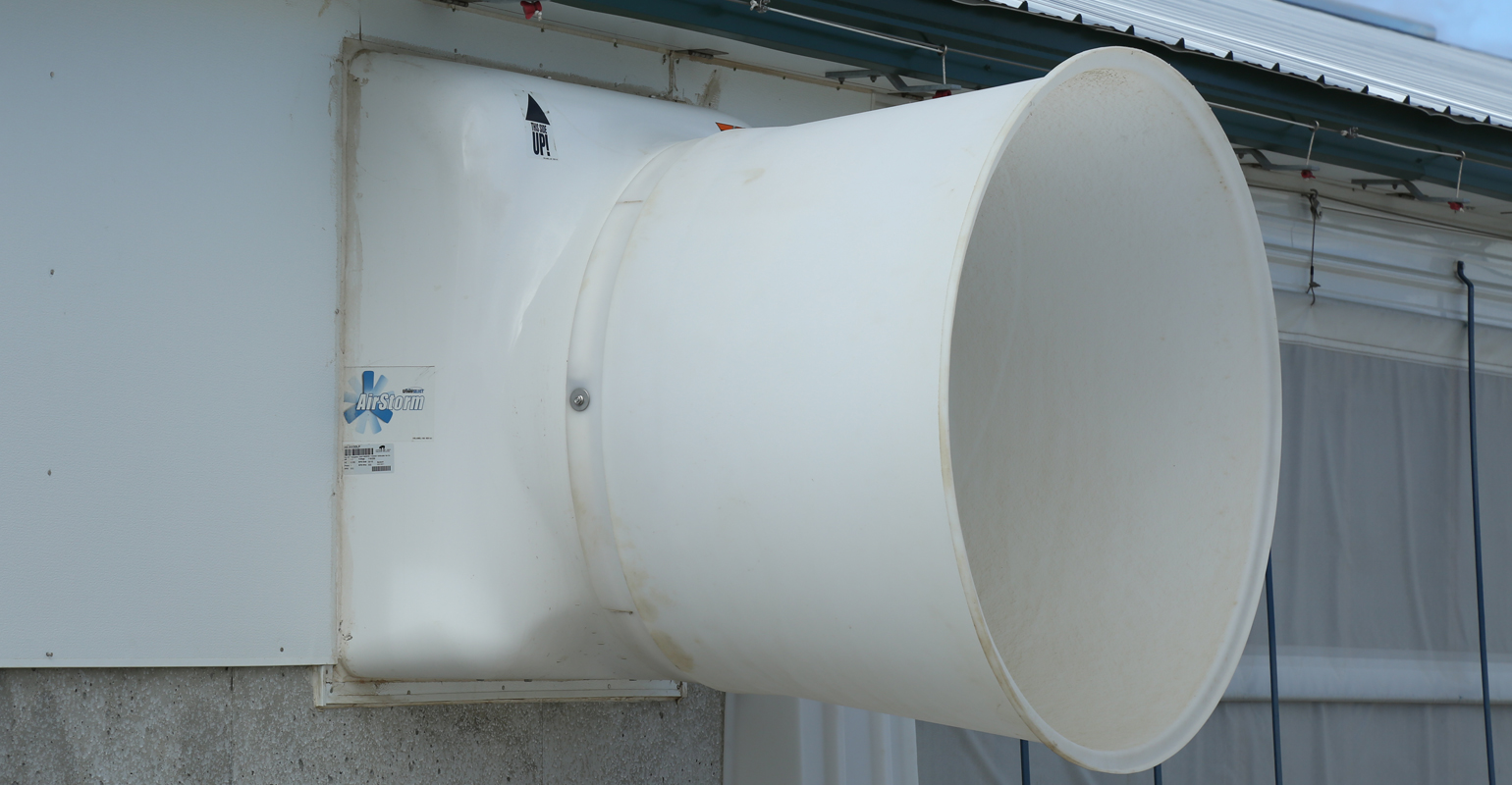

A new method of controlling variable speed fans allows using larger, higher-capacity fans to accurately deliver lower cfm needed for minimum ventilation rates.

Variable Frequency Drive or VFD system uses a three-phase, single-speed motor and VFD controller. A VFD controller receives a 0- to 10-volt signal from the house controller and sends a corresponding signal to the fan motor in frequency or hertz. The full range of a VFD fan varies from full delivery down to nearly zero. This lower cfm range permits a producer to replace several smaller minimum fans on existing facilities with a single, larger VFD fan also functioning as a tunnel fan in the summer. Varying the hertz to control fan speed has a significant advantage over using voltage including less motor overheating and improved energy efficiency because decreasing frequency also reduces power consumption.

Most fans can be converted to the VFD system by swapping the motor with a three-phase motor and adding a VFD controller. Most whole house computer style controllers are capable of sending a 0- to 10-volt signal to the VFD control. Older style controllers with on-off signals can also be used with a slightly different method. The VFD controller features a manual speed control knob. The operator can set the minimum ventilation, and the ventilation control can override the VFD control and run the fan at high if the building temperature increases. As the building cools down, the control shuts off and the fan returns to the minimum rate set on the VFD control.

By Austin Baker, ventilation director for Hog Slat Inc. Contact by email at [email protected]
