BinMaster rotary paddle switch aims to solve bulk storage problems

Rotary paddle switch can be used in storage bins containing grain, seed, feed, fertilizer or bulk ingredients.

March 17, 2022

2 Min Read

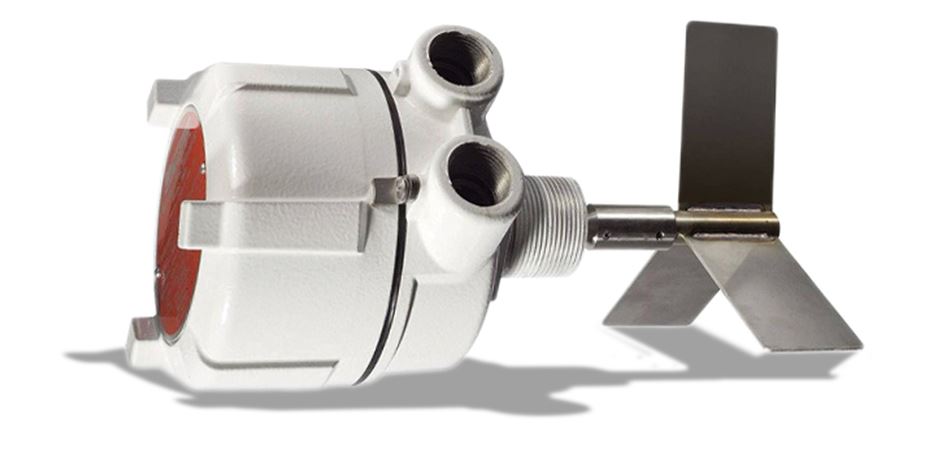

Without proper bulk storage management, managers face overflows, outages, production stoppage and even employee injuries. The BMR-100 rotary sensor offers simple, electromechanical measurement for ordinary storage and processing operations. It is generally wired to a light or horn to alert to high or empty levels.

The new BMR-100 rotary is an affordable level switch to alert to vessel levels in solid materials with a bulk density of two pounds to more than 100 lb./cubic feet.

A rotary paddle switch is used across many process industries. Some of the more common industrial applications include:

  • Agriculture for storage bins containing grain, seed, feed, fertilizer or bulk ingredients.

  • The construction industry storage silos for concrete, cement or roofing granules.

  • Mining and minerals such as sand, gravel, aggregate, coal storage and surge bins.

  • Plastic molding operations to detect level of plastics pellets in silos or hoppers.

This versatile level indicator is offered with a wide range of accessories. There are 19 different paddles for light, medium and heavy bulk solid materials. Collapsible paddles are convenient for installation without entering the vessel. Carbon and stainless-steel mounting plates options come in 0, 10, 20 and 30 degree angles for top mounting on sloped roofs.

Point-level alarm panels display vessel level conditions via a blinking light and an audible alarm with up to 24-level indicator stations. Quick-disconnect accessories can be added to replace hard wiring. They make BMR-100 easy to install and remove for cleaning, maintenance or replacement. An adjustable top mount allows you to change the high-level threshold simply using an adjustable coupling that can be moved up and down a 72-inch shaft.

The BMR-100 is in stock and available for immediate shipment.

Source: BinMaster, which is solely responsible for the information provided, and wholly owns the information. Informa Business Media and all its subsidiaries are not responsible for any of the content contained in this information asset.
